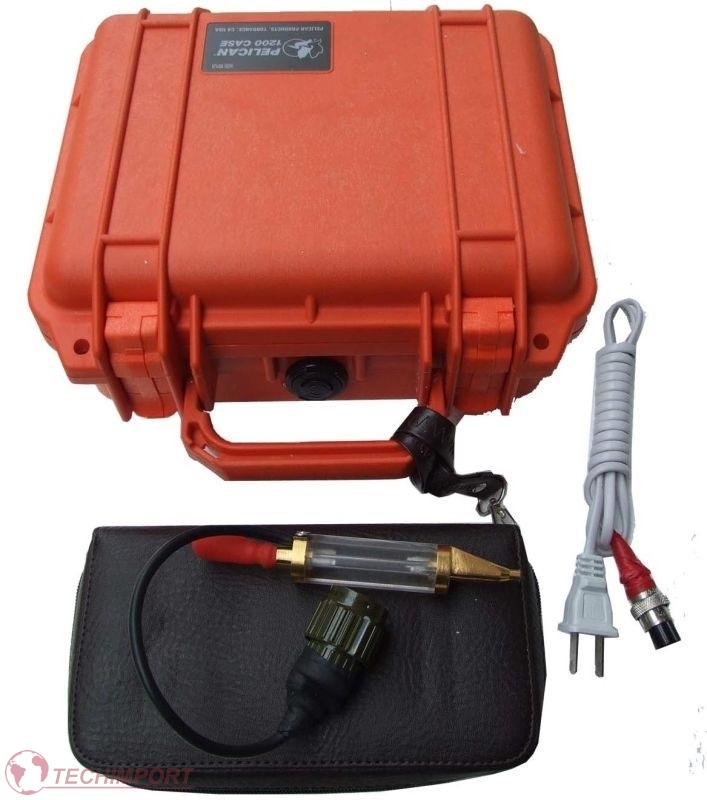

Digital Resistivity Meter RMR-100 is a portable measuring instrument designed to give a quick, reliable measurement of the resistivity from a small sample, expressed in Ohm-Meters. This transistorized meter accurately measures the resistivity of fluids, slurries, and semi-solids with resistivities from 0.2 to 100 Ohm-Meters. In addition to resistivity, the device also displays temperature. These solid state electronic instruments are designed to meet the needs of field and laboratory personnel for resistivity measurement according to API procedure.
A built-in temperature probe provides direct measurement of the sample temperature in the transparent Lucite® cell. The instrument features an easy-to-read LCD display for high accuracy. The meter is battery powered and is rugged enough for field usage.
Resistivity Range: 0.2 to 100 Ohm-Meters
Temperature Range: 10 to 50oC
Specification
| № | Description | Technical parameters |
| 1 | Power | 220В±10%；50±1 Hz |
| 2 | Working time with battery | 30 hours |
| 3 | Working temperature | 10～50（℃） |
| 4 | Measurement range | 0.2～100（Ом·м） |
| 5 | Correlation | 2.0～5.0（Ом·м）3%-5% |
| 6 | Temperature range | 10～50（℃） ±1℃ |
| 7 | Temperature setup 15～35 | 15～35（℃） 1℃ |
| 8 | Temperature auto-compensation | －10～10（℃） 0.1℃ |
